[DM5100] ExcelBand™ Super Range DNA Ladder (50 bp-25 kb), 500 μl

125.00 125.0 USD

125.00

Add to Cart






Description

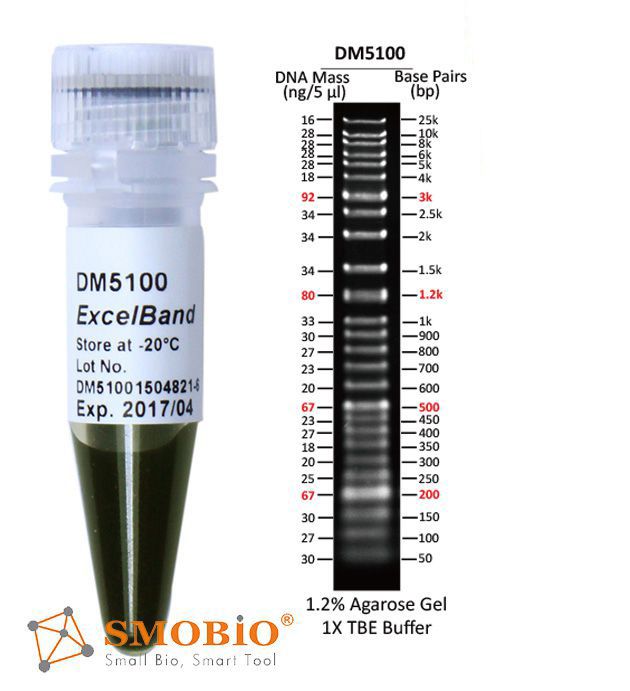

The DM5100 ExcelBand™ Super Range DNA Ladder is a ready-to-use DNA ladder, which is pre-mixed with loading dye for direct gel loading. The DNA Ladder DM5100 is composed of 26 individual DNA fragments: 25k, 10k, 8k, 6k, 5k, 4k, 3k, 2.5k, 2k, 1.5k, 1.2k, 1k, 900, 800, 700, 600, 500, 450, 400, 350, 300, 250, 200, 150, 100 and 50 base pairs derived from a mixture of PCR products and specifically digested plasmid DNA. This product contains four enhanced bands (3k, 1.2k, 500 and 200 bp) for easier reference. In addition, three tracking dyes, Xylene cyanol FF, Bromophenol blue and Orange G which mimic the migration of 4,000 bp, 500 bp and 50 bp dsDNA during electrophoresis are added for real time monitoring.


Features

  • Sharp bands

  • Quick reference enhanced bands

  • Ready-to-use— premixed with loading dye for direct loading

  • Stable— room temperature storage over 6 months


Source

Phenol extracted PCR products and dsDNA digested with specific restriction enzymes, equilibrated in 10 mM Tris-HCl (pH 8.0) and 10 mM EDTA.


Range

50 ~ 25,000 bp


Concentration

88.7 µg/ 500 µl


Recommended loading volume

5 µl/ well


Storage

Room temperature for 6 months
4°C for 12 months
-20°C for 36 months



Specification

Cat. No.

DM5100

Series Name

ExcelBand™

Product Size

500 μl

Size Range

50 – 25000 bp

Band Number

26

Tracking Dye

Orange G, Bromophenol blue
and Xylene cyanol FF

Enhanced Band

200, 500, 1200 and 3000 bp

DNA fragments with identical in size are indistinguishable on agarose gels, but, on acrylamide gels, even slight differences in DNA sequence can lead to noticeably different migration rates. To provide increased intensity of DNA marker/ladder bands, multiple DNA fragments with identical in size but different in DNA sequences are used. SMOBIO's AccuBand™ series DNA markers (DM1200, DM2000, DM2200 and DM2400) are more suitable for DNA PAGE.






The conserved basic residues and the charged amino acid residues at the α-helix of the zinc finger motif regulate the nuclear transport activity of triple C2H2 zinc finger proteins

Chih-Ying Lin, Lih-Yuan Lin PLoS One. 2018; 13(1): e0191971. Published online 2018 Jan 30. doi: 10.1371/journal.pone.0191971

PMCID: PMC5790263


Transposable elements generate population-specific insertional patterns and allelic variation in genes of wild emmer wheat (Triticum turgidum ssp. dicoccoides)

Katherine Domb, Danielle Keidar, Beery Yaakov, Vadim Khasdan, Khalil Kashkush BMC Plant Biol. 2017; 17: 175. Published online 2017 Oct 27. doi: 10.1186/s12870-017-1134-z

PMCID: PMC5659041
