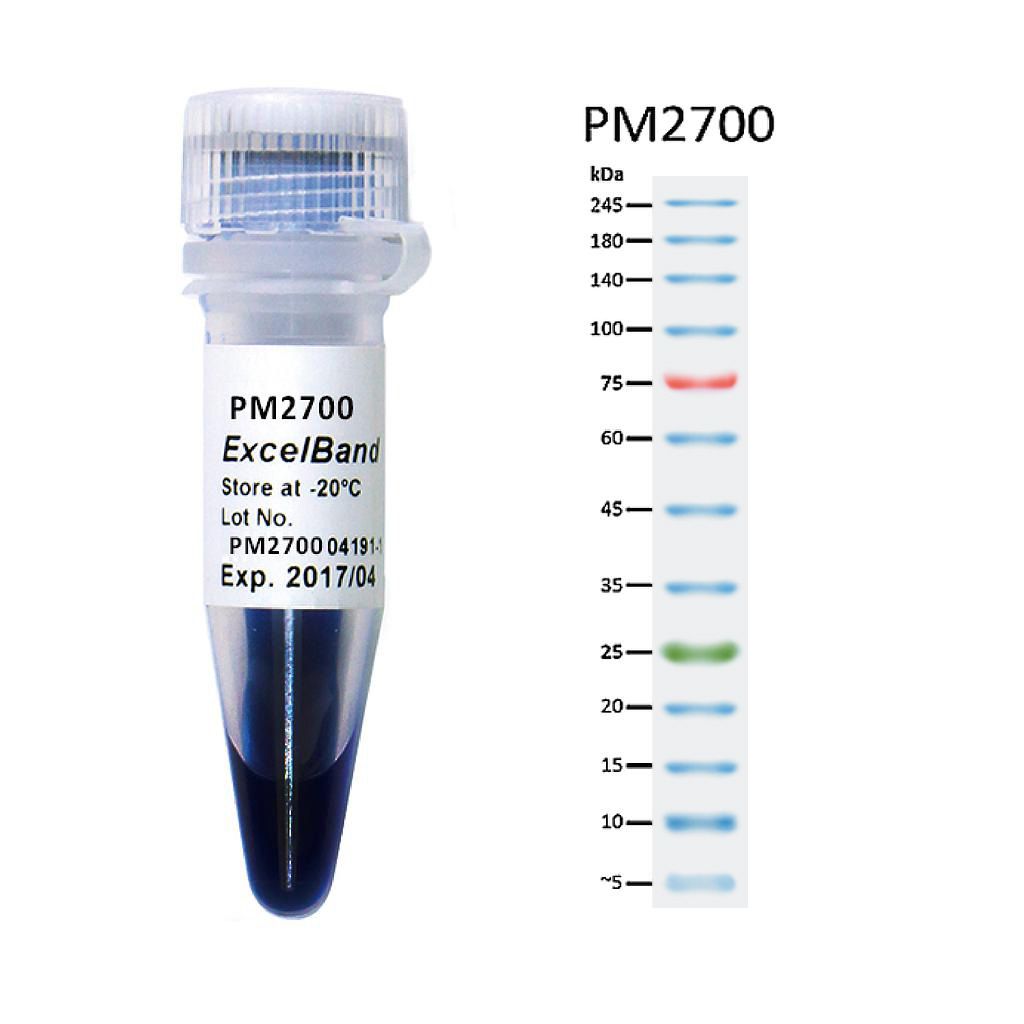

The PM2700 ExcelBand™ 3-color Broad Range Protein Marker is a ready-to-use three-color protein standard with 13 pre-stained proteins covering a wide range of molecular weights from 5 to 245 kDa in Tris-Glycine buffer (3.5 kDa to 235 kDa in Bis-Tris (MOPS) buffer and Bis-Tris (MES) buffer). Proteins are covalently coupled with a blue chromophore except for two reference bands (one green and one red band at 25 kDa and 75 kDa, respectively) when separated on SDS-PAGE (Tris-Glycine buffer). The PM2700 ExcelBand™ 3-color Broad Range Protein Marker is designed for monitoring protein separation during SDS-polyacrylamide gel electrophoresis, verification of Western transfer efficiency on membranes (PVDF, nylon, or nitrocellulose) and for approximating the size of proteins.
Ready-to-use — Premixed with a loading buffer for direct loading, no need to boil.
Two reference bands — 75 kDa (red) and 25 kDa (green)
Approximately 0.1~0.4 mg/ml of each protein in the buffer (20 mM Tris-phosphate (pH 7.5), 2% SDS, 0.2 mM DTT, 3.6 M urea, and 15% (v/v) glycerol).

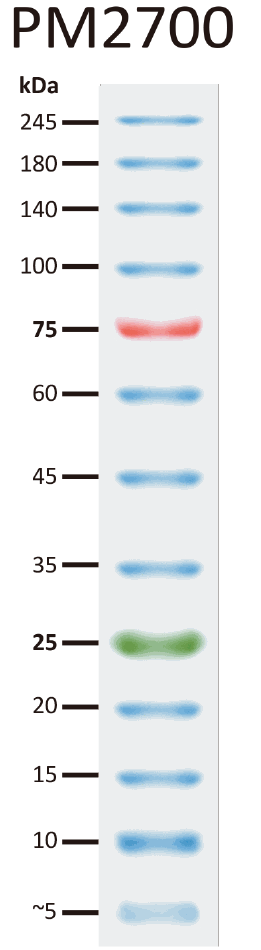

Under suggested conditions, PM2700 ExcelBand™ 3-color Broad Range Protein Marker resolves 13 major bands in SDS-PAGE (Bis-Tris gel, MES buffer) and after Western blotting to nitrocellulose membrane.
4°C for 3 months
-20°C for long term storage
2 x 250 μl
5 – 245 kDa
25, 75 kDa
Manual_PM2700_ExcelBand™ 3-color Broad Range Protein Marker (2023 ver. 3.2.0)

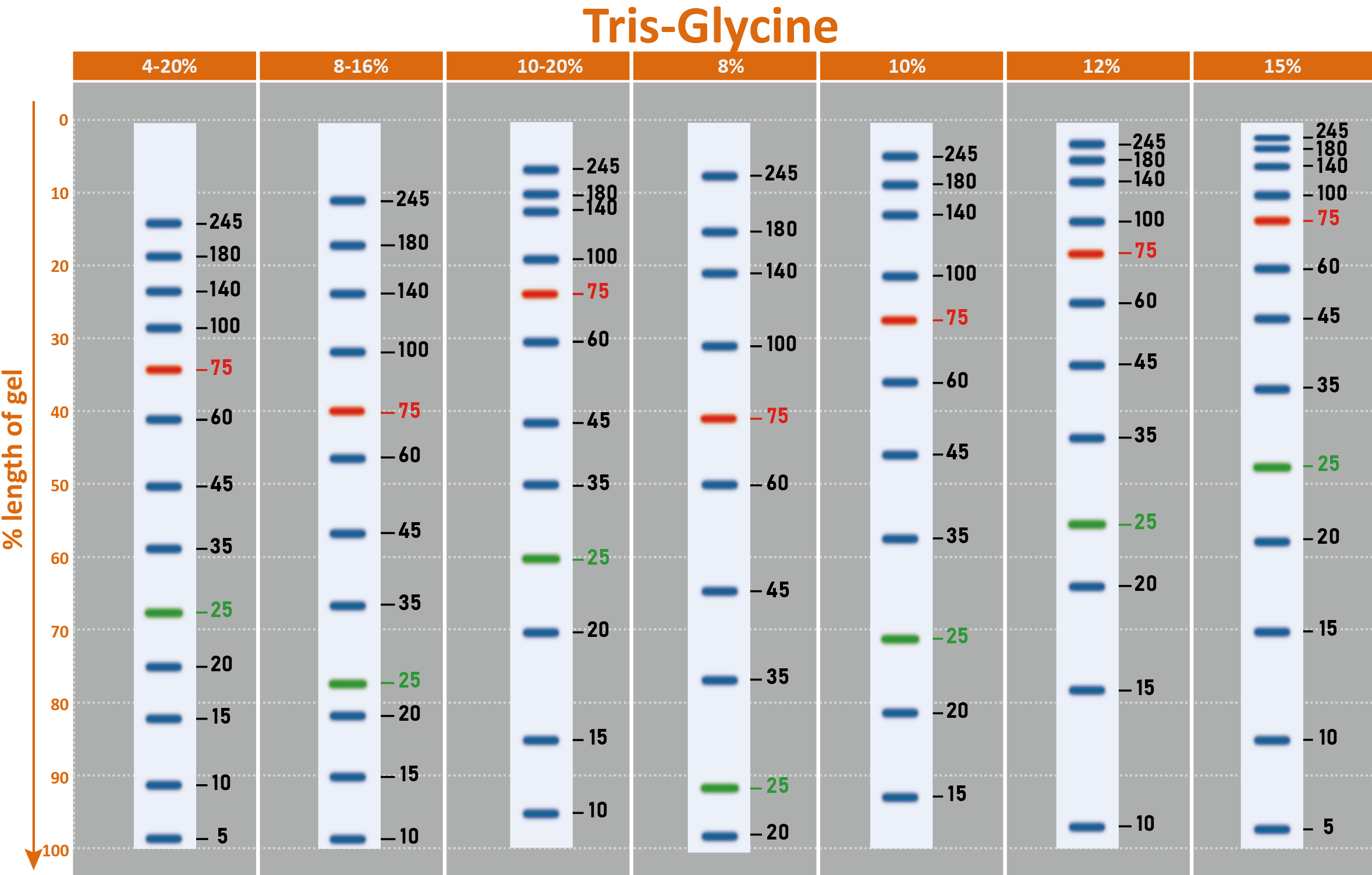

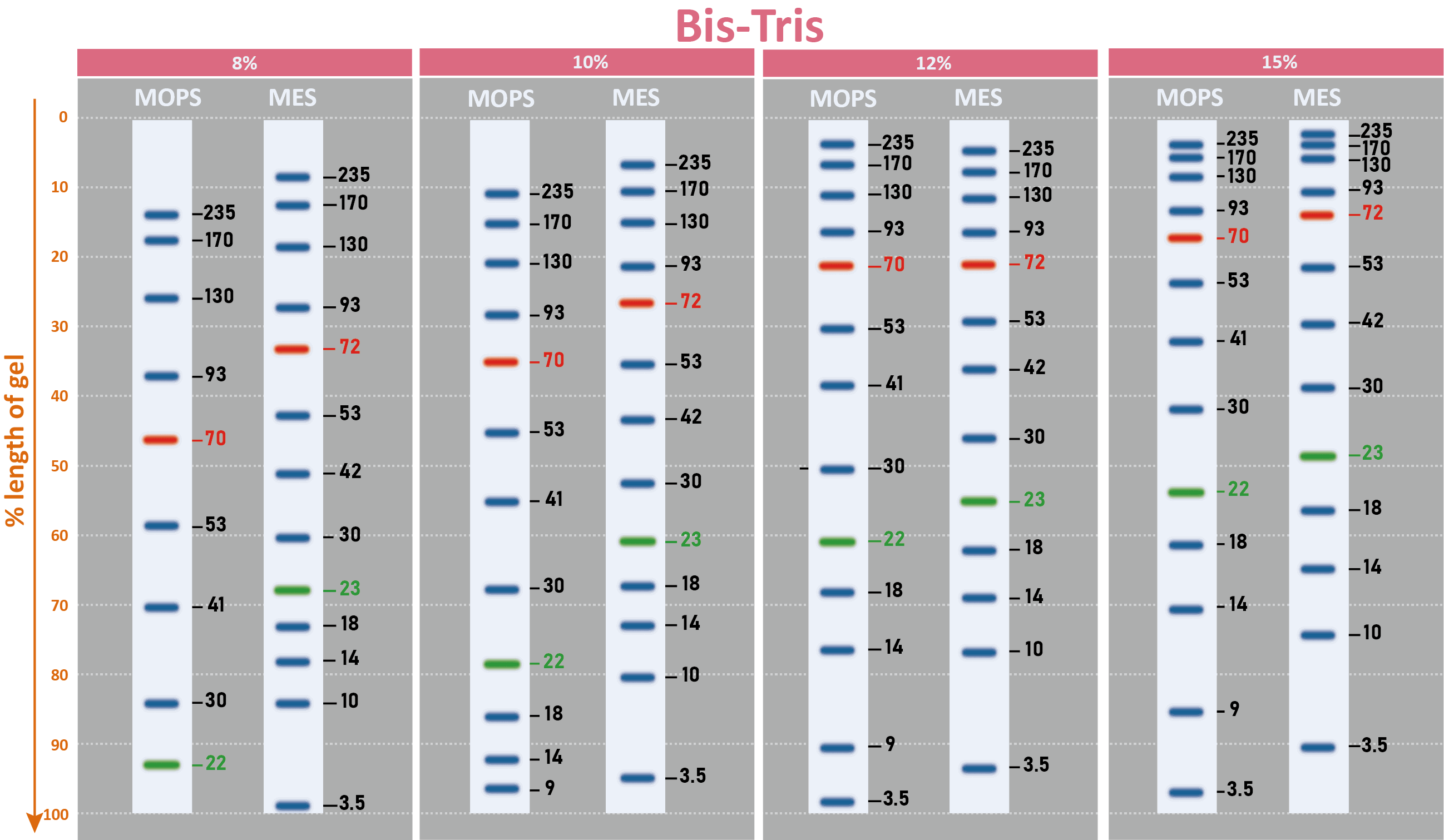

Migration patterns and approximate MWs (kDa)
Why are there contrasting results in molecular weights after using different brands of protein markers?
A. Different proteins even with similar molecular weights would exhibit apparent disparity from the resulting SDS PAGE due to the difference in the composition of the protein’s amino acids (e.g. gelatin). The reason for the disparity is due to the amino acids composition that affects the binding of the protein and SDS. Therefore, we can say that protein marker is a handy tool to estimate molecular weight, but there is no absolute molecular weight standard.
B. While running SDS-PAGE, protein mobility can be affected by the composition of the buffer used, gel percentage, the voltage used, running time, as well as if there is a pre-run.
C. Another recommendation for high molecular weight proteins is to prolong the running time to clarify the relative location of bands.
Protein marker Retention Period: Mentioned -20°C and over 2 years. Is it available for 30 months or 36 months? Have you tested this period?
Yes, we have tested our PM2700. The results showed that the PM2700 is stable at -20℃ for at least two years. It has also shown strong performance for more than 36 months under our careful storage. However, we must only suggest a 2 year retention period for the following reasons: There may be a variation in the environment in storage, and improper use may lead to accumulated damage to the proteins and therefore reduce its retention period.
How many times of freezing and thawing are available for protein markers? If it uses 5 μL per load, would the total usage quantity be 50 times x 2 (250 μL x 2 tube)?
Yes, 100 uses (5 μL each time) can be expected if freezing and thawing are conducted carefully and properly at the appropriate temperature. Before each use, make sure the protein marker is thoroughly thawed.
Do you have data comparison for protein molecular weight’s precision with other protein markers?
Yes. Usually, pre-stained marker is written on “estimated molecular weight” for caution. It is known that the analysis of protein size by an SDS-PAGE is only for “estimation” because of the intrinsic variation of amino acid composition in all proteins including stained and non-stained ones. For example, a protein which is highly hydrophilic might show a particular higher position in the SDS-PAGE analysis when compared to a hydrophobic one. We did compare the migration patterns of SMOBIO’s Protein Markers with other brands, and we concluded that it was difficult to define “precision” due to the reasons mentioned above. Therefore, in the product description, we suggest our users to calibrate the MW against their interested proteins. Although it is impossible to define "precision" for molecular weight of proteins in SDS-PAGE, we did compare the migration pattern of pre-stained markers with unstained protein marker (Invitrogen MARK12) for calibration. It is concluded that the estimated molecular weight of SMOBIO’s pre-stained marker shows a curve matching well with that of unstained native proteins (MARK12), representing a good estimation of the MW of each pre-stained protein in the SDS-PAGE analysis.
Will SMOBIO’s Protein Markers/Ladder be washed out during Western blotting process?
SMOBIO’s Protein Markers/Ladder will be only slightly washed out during Western blotting process. However, the excess of Tween-20 (more than 0.2%) in washing buffer will affect SMOBIO’s Protein Markers/Ladder on the transfer membrane.
Here are suggestions for Western blotting process:
1. Transfer SMOBIO’s Protein Markers/Ladder to membrane with transfer buffer containing 20% methanol to fix SMOBIO’s Protein Markers/Ladder on membrane.
2. Wash membrane with PBS or TBS containing less than 0.1% Tween-20.
Will SMOBIO’s Protein Markers/Ladder be affected by the stripping/deprobing process with the presence of β-Mercaptoethanol (β-ME)?
In normal circumstances, the presence of βME during the stripping/deprobing process will only slightly affect SMOBIO’s Protein Markers/Ladder. However, the presence of Tween-20 on PVDF membrane during the stripping/deprobing process has adverse effects on SMOBIO’s Protein Markers/Ladder.
Here are suggestions for Western stripping/deprobing process:1. Wash the PVDF membrane in methanol for 5~10 minutes prior to the stripping/deprobing process to mitigate the adverse effect of Tween-20.
2. Recommended stripping buffer (for 1 L):
15 g glycine,
1 g SDS,
10 mL Tween 20.
Dissolve in 800 mL distilled water.
Adjust pH to 2.2
Bring volume up to 1 L with distilled water
Evaluation the efficacy of oral immunization of broiler chickens with a recombinant Lactobacillus casei vaccine vector expressing the Carboxy-terminal fragment of α-toxin from Clostridium perfringens
Mohammad Ali Shamshirgaran, Mehdi Golchin, Mahmoud Salehi, Reza Kheirandish. BMC Vet Res. 2023 Jan 19;19(1):13. doi: 10.1186/s12917-023-03566-8.
Protein Identification of Seminal Plasma in Bali Bull ( Bos javanicus)
Hikmayani Iskandar, Göran Andersson, Herry Sonjaya, Raden Iis Arifiantini, Syahruddin Said, Hasbi Hasbi, Tulus Maulana, Abdullah Baharun
Animals (Basel). 2023 Feb 1;13(3):514. doi: 10.3390/ani13030514.
Physicochemical and Biochemical Properties of Trypsin-like Enzyme from Two Sturgeon Species
Abbas Zamani, Maryam Khajavi, Abdolmohammad Abedian Kenari, Masoumeh Haghbin Nazarpak, Atefeh Solouk, Mina Esmaeili, Enric Gisbert
Animals (Basel). 2023 Feb 26;13(5):853. doi: 10.3390/ani13050853.
Dual-functional bioactive silk sericin for osteoblast responses and osteomyelitis treatment
Chayanee Noosak, Pavarish Jantorn, Jirut Meesane, Supayang Voravuthikunchai, Dennapa Saeloh, PLoS One. 2022 Mar 2;17(3):e0264795. doi: 10.1371/journal.pone.0264795. eCollection 2022.
Snake Venom Proteomics, Immunoreactivity and Toxicity Neutralization Studies for the Asiatic Mountain Pit Vipers, Ovophis convictus, Ovophis tonkinensis, and Hime Habu, Ovophis okinavensis
Choo Hock Tan, Praneetha Palasuberniam, Kae Yi Tan, Toxins (Basel). 2021 Jul 23;13(8):514. doi: 10.3390/toxins13080514.
Comparative venom proteomics of banded krait (Bungarus fasciatus) from five geographical locales: Correlation of venom lethality, immunoreactivity and antivenom neutralization
Yi LinHia, Kae YiTan, Choo Hock Tan Trop. 2020 Jul;207:105460. doi: 10.1016/j.actatropica.2020.105460. Epub 2020 Apr 9.
Recombinant C-Reactive Protein: A Potential Candidate for the Treatment of Cutaneous Leishmaniasis of BALB/c Mice Caused by Leishmania major
Seyedeh Noushin Zahedi, Seyed Hossein Hejazi, Maryam Boshtam, Farahnaz Amini, Hossein Fazeli, Mahdieh Sarmadi, Mahsa Rahimi & Hossein Khanahmad Acta Parasitol. 2020 Jul 16. doi: 10.1007/s11686-020-00251-w. Online ahead of print.
A Novel Methanol-Free Platform for Extracellular Expression of rhGM-CSF in Pichia pastoris
Roghayeh Shirvani, Sajjad Yazdanpanah, Mohammad Barshan-Tashnizi, Maryam Shahali Mol Biotechnol. 2019 Jul;61(7):521-527. doi: 10.1007/s12033-019-00182-6.
ExcelBand™ Protein Markers
Ready-to-use— premixed with a loading buffer for direct loading, no need to boil
Broad range— 310 kDa to 5 kDa
Pre-stained bands — for monitoring protein separation during electrophoresis and Western blotting transferring efficiency on membrane
Enhanced bands— for quick reference

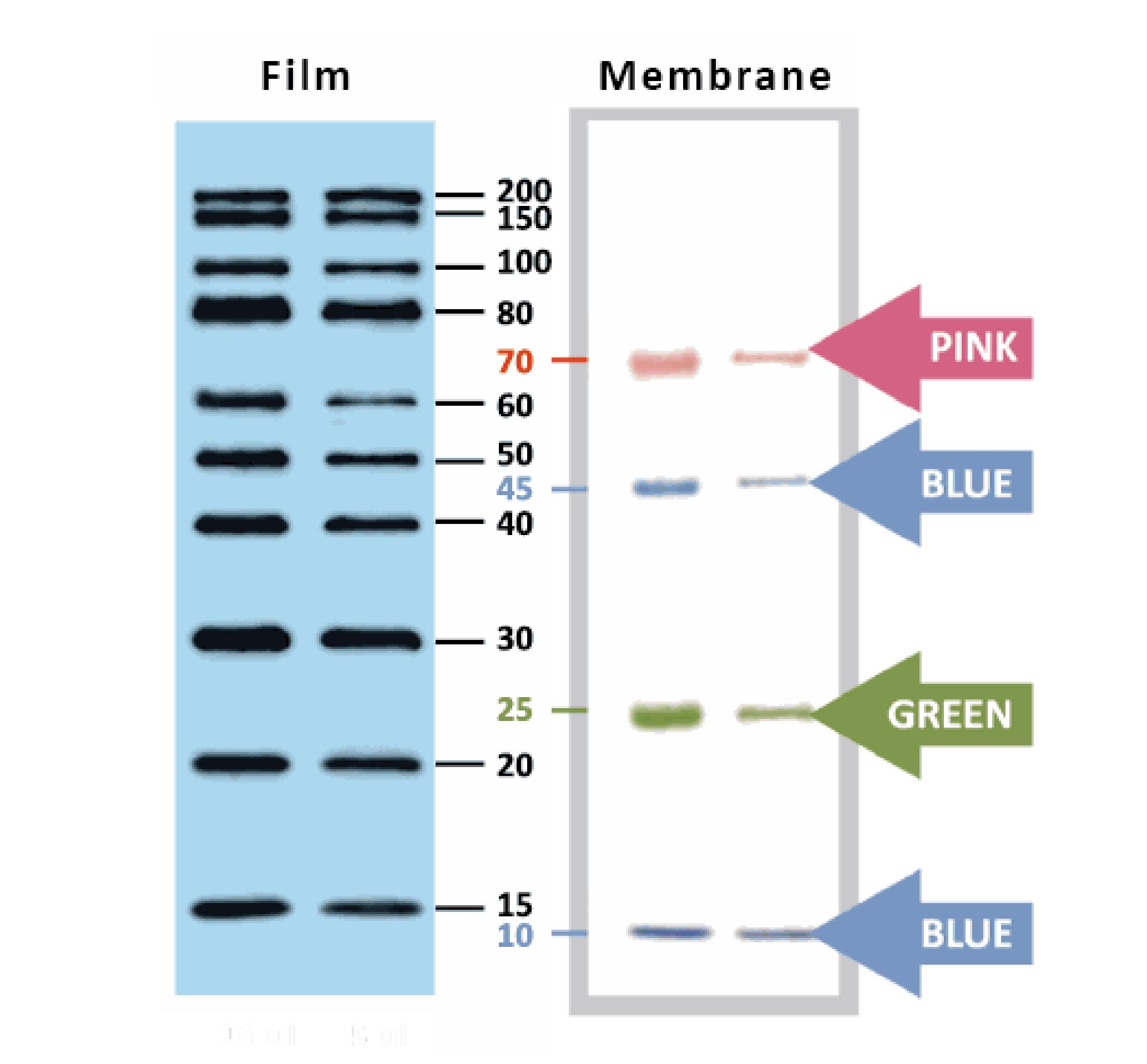

YesBlot™ Western Marker I
