[DM3160] FluoroBand™ 1 KB (0.25-10 kb) Fluorescent DNA Ladder, 500 μl

Call For Price






Description

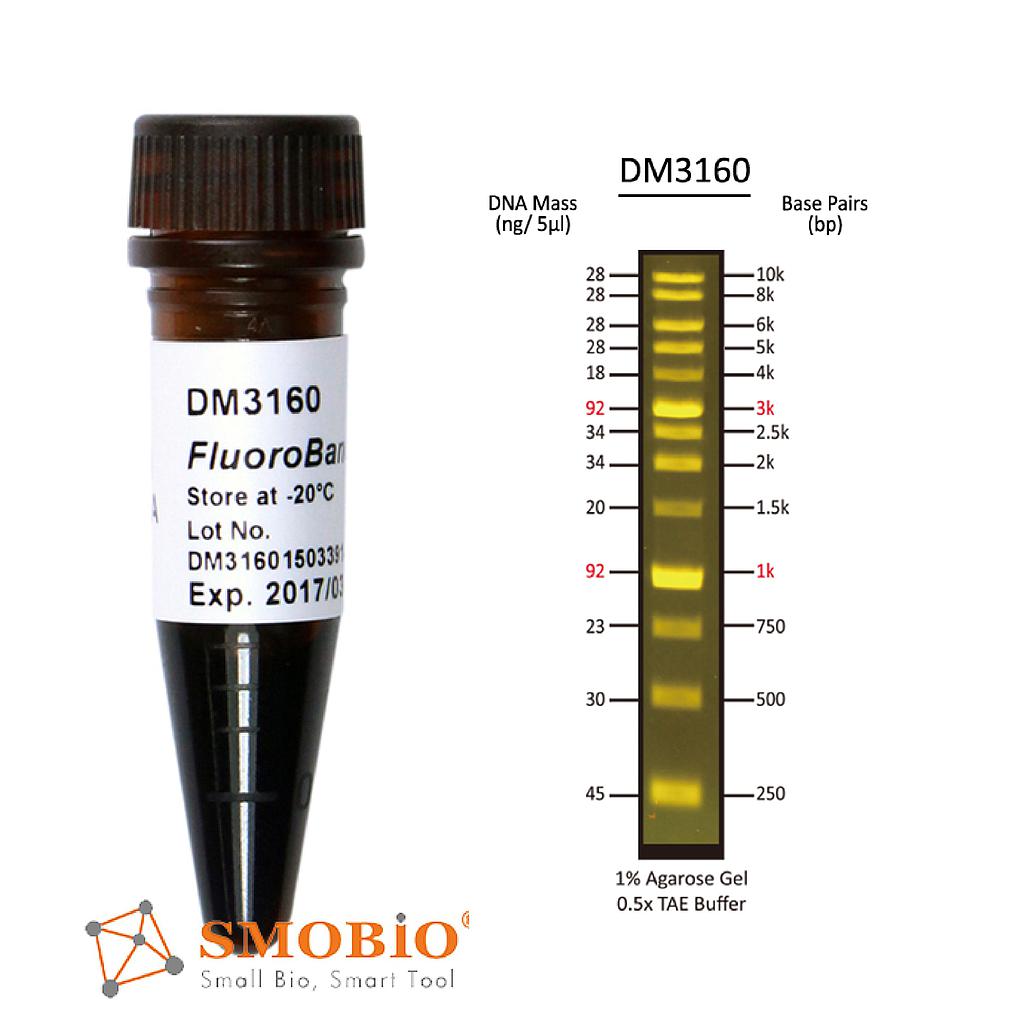

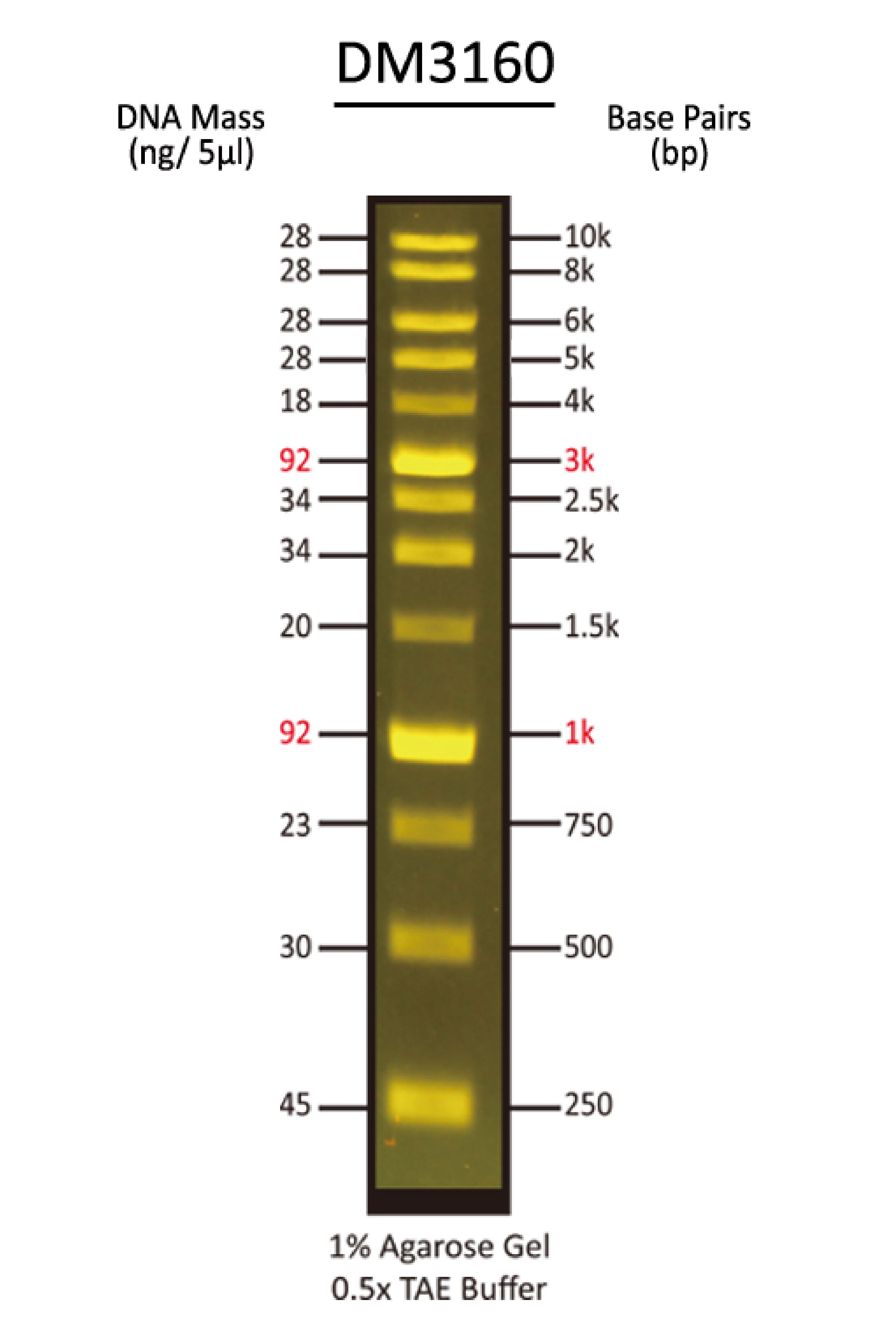

The DM3160 FluoroBand™ 1KB (0.25-10 kb) Fluorescent DNA Ladder is a ready-to-use DNA ladder, which is pre-mixed with high sensitivity DNA binding fluorescent dye and loading dye for direct gel loading. The DNA ladder DM3160 is composed of 13 individual DNA fragments: 10k, 8k, 6k, 5k, 4k, 3k, 2.5k, 2k, 1.5k, 1k, 750, 500, and 250 bp derived from a mixture of PCR products and specifically digested plasmid DNA; these bands can be visualized when illuminated with 470 nm blue light or UV light. This product contains two enhanced bands (3 kb and 1 kb) for easier reference. In addition, two tracking dyes, Xylene cyanol FF and Bromophenol blue which mimic the migration of 4,000 bp and 500 bp dsDNA during electrophoresis are also added for real time monitoring. Real time observation of the electrophoresis is also possible if compatible light source is fitted to the electrophoresis tank.


Features

  • Sharp bands

  • Quick reference enhanced bands

  • Ready-to-use— premixed with loading dye for direct loading

  • Stable— room temperature storage over 6 months

  • Directly observed by UV or blue light— premixed with high sensitive DNA fluorescent dye


Source

Phenol extracted PCR products and dsDNA digested with specific restriction enzymes, equilibrated in 10 mM Tris-HCl (pH 8.0) and 10 mM EDTA.


Range

250 ~ 10,000 bp


Concentration

50 µg/ 500 µl


Recommended loading volume

5 µl/ well


Storage

Protected from light
Room temperature for 6 months
4°C for 12 months
-20°C for 24 months



Specification

Cat. No.

DM3160

Series Name

FluoroBand™

Product Size

500 μl

Size Range

250 – 10000 bp

Band Number

13

Tracking Dye

Bromophenol blue
and Xylene cyanol FF

Enhanced Band

1000 and 3000 bp

Yes, it is possible to view the fluorescent signals under blue light and UV light.






The conserved basic residues and the charged amino acid residues at the α-helix of the zinc finger motif regulate the nuclear transport activity of triple C2H2 zinc finger proteins

Chih-Ying Lin, Lih-Yuan Lin PLoS One. 2018; 13(1): e0191971. Published online 2018 Jan 30. doi: 10.1371/journal.pone.0191971

PMCID: PMC5790263


Transposable elements generate population-specific insertional patterns and allelic variation in genes of wild emmer wheat (Triticum turgidum ssp. dicoccoides)

Katherine Domb, Danielle Keidar, Beery Yaakov, Vadim Khasdan, Khalil Kashkush BMC Plant Biol. 2017; 17: 175. Published online 2017 Oct 27. doi: 10.1186/s12870-017-1134-z

PMCID: PMC5659041
