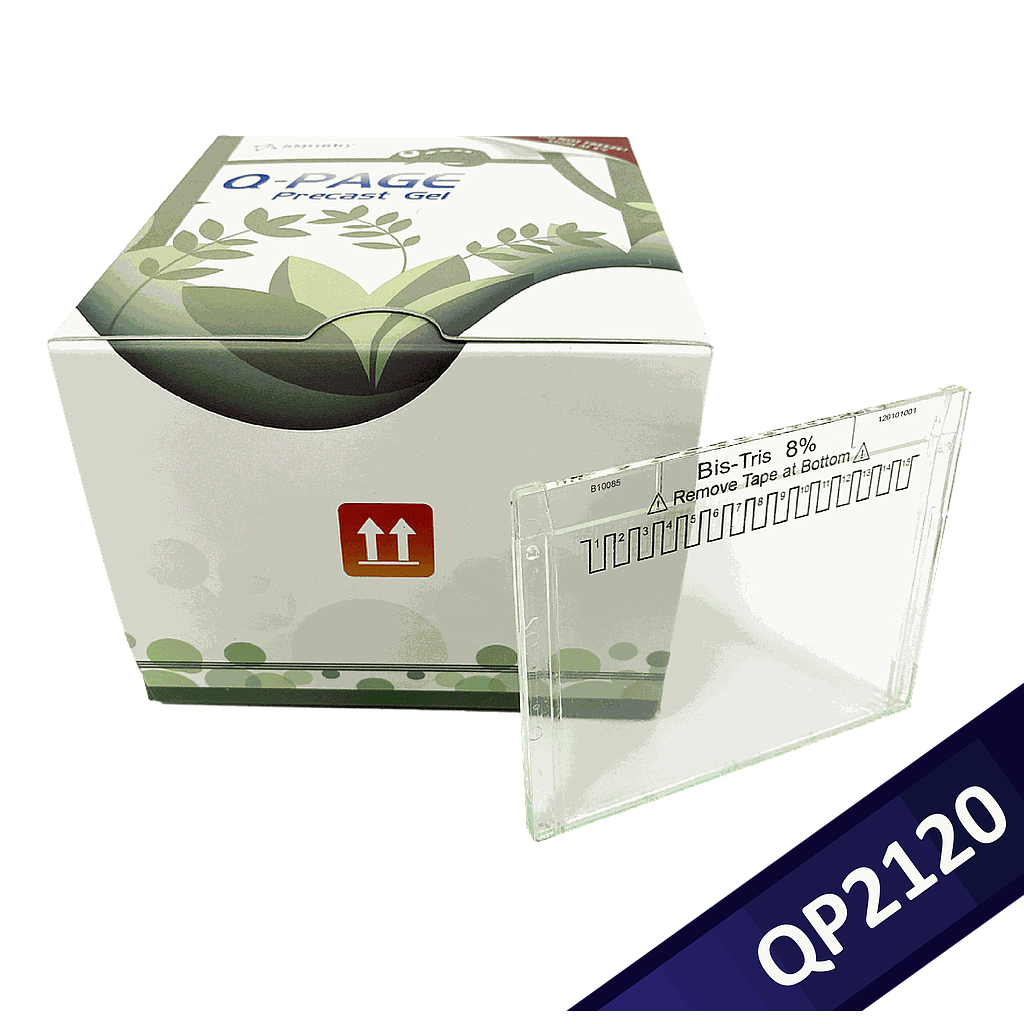

[QP2120] Q-PAGE™ Bis-Tris Precast Gel (Mini, 15 wells, 8%), 10 gels

Call For Price






Description

Q-PAGE™ Bis-Tris Precast Gel is a high-performance and easy to use precast polyacrylamide gel for electrophoresis in Bis-Tris buffer system (MOPS or MES). The optimized gel formula allows Q-PAGE™ Bis-Tris Precast Gel to show improved resolution, accurate results, and an extended shelf-life over conventional Laemmli Tris-HCl gels.

Q-PAGE™ Bis-Tris Precast Gels are available in gradient (4 to 12%) and fixed (8% and 12%) concentrations of polyacrylamide in 12-and 15-well formats. Two available cassette sizes, Mini (10 x 8.3 cm) and Midi (10 x 10 cm), are compatible with most popular protein electrophoresis systems. Q-PAGE™ Mini (QP2XXX) Gels are suitable for Bio-Rad® and other systems. Q-PAGE™ Midi (QP3XXX) Gels are suitable for Invitrogen® XCell SureLock® Mini-Cell, Invitrogen® Mini Gel Tank, Hoefer SE260, and other systems.


Key Features

  • User-friendly gel cassette:

    • Numbered and framed wells for sample loading

    • Labeled warning sign and green tape as reminder

  • Enhanced gel performance:

    • Enhanced band sharpness

    • Better resolution of small proteins

    • Stable for shipping at ambient temperature

  • Easy compatibility:

    • Available as homogeneous and adjusted gradient gels for a wide range of protein separation.

    • Compatible with most popular protein electrophoresis systems


Storage and stability

Store Q-PAGE™ Precast Gels at 4°C for periods up to 12 months.

Do not freeze Q-PAGE™ Precast Gels. Remove tape and comb before electrophoresis.

Keep Q-PAGE™ Precast Gels flat during storage.





Technical






Clear and sharp bands, high resolution

Q-PAGE™ Bis-Tris Precast Gel shows high resolution of protein separation.



 QP2120 Specifications

Gel

Bis-Tris

Buffer systems

MOPS and MES

Features

Clear and sharp bands,

high resolution

Cassette size

Mini Gel

(10 X 8.3 cm)

Gel dimensions



8.1 x 7.4 x 0.1 cm

(W x L x thickness) cm

Electrophoresis system

Bio-Rad systems

Well format &

Capacity

15 wells,

22 μl/well

Gel percentage

8 %

Accessory tray

Product description

Tip card

Gel remover

Cassette opener







Setting Up and Running Q-PAGE™ Mini Precast Gel






Removing Q-PAGE Mini Gel from cassette





Setting up gel/membrane sandwich for Western transfer





Recommendations/Tips for Gel Running

1. Remove comb and tape before adaption.

2. Use fresh 1X running buffer for the inner cathode chamber.

3. Do not use Tris-Glycine running buffer for Q-PAGE™ Bis-Tris Precast Gels.

4. Rinse the wells before sample loading.


Sample Preparation for SDS-PAGE

1. Mix protein sample with 2X sample buffer.

2. Heat the diluted samples at 95°C for 5 min or at 70°C for 10 min.

3. Cool the diluted samples to 4°C and spin down the water condensed on tube surface. (If there is high viscosity part at bottom of tube, transfer supernatant to a new tube.)



Prepare Q-PAGE™ for Sample Loading

1. Open the blister tray of Q-PAGE™ Precast Gel.

2. Briefly rinse the gel cassette with ddH2O.

3. Remove tape and comb; avoid squeezing the gel.

4. Adapt Q-PAGE™ to electrophoresis system; instruction are provided below. (BioRad Mini-PROTEAN® Core Electrophoresis System is recommended.)

5. Use a pipette to gently wash the wells with running buffer to remove residual storage buffer.

6. Fill the wells with running buffer prior to sample loading.

7. Load samples and pre-stained protein marker into numbered wells.

8. Fill both inner and outer chambers with running buffer to the highest level. Ensure gel wells are completely covered.


 Power Setting for Running Q-PAGE™

Optimize the voltage and running time if needed.

Voltage*1

130 V

180 V

230 V*2

Running Time*3

45-60 mins

25-40 mins

15-30 mins

Expected Current

Initial (per gel)

Final (per gel)



60-70 mA

20-25 mA



100-110 mA

40-50 mA



130-140 mA

60-70 mA

Expected temperature

25-30°C

25-35 °C

35-45°C

*1 Set voltage higher than 100 V is recommended.

*2 For higher voltage conditions, please use fresh running buffer for inner and outer chambers.

*3 Running time varies depending on gel percentage, running buffer, temperature, and power supply

Remove Q-PAGE™ Gel from Cassette

Open cassette immediately after electrophoresis. Avoid gel drying.

1. Insert the cassette opener into corners of cassette.

2. Sequentially pry the opener to separate the two plates.

3. Gently pull two plates apart from the top of cassette.

4. Carefully detach the gel either from the bottom of gel or the top side of the cassette.

  -Avoid diagonally peeling the gel from the corner.

    -Use water to help gel detachment if it needed

5. Gently remove the gel for further staining or Western blotting.






















Gel Staining

Proteins separated using Q-PAGE™ Precast Gels can be further stained with most popular staining reagents, such as Coomassie dyes (R-250 or G-250), Silver-stain solution, and FluoroStain™ Protein Fluorescent Staining Dye. (Cat. No. PS1000)

Transferring Protein from Q-PAGE™ to Blotting Membrane

1. After protein separation using Q-PAGE™, gently detach QPAGE™ from cassette and then equilibrate the gel in transfer buffer.

2. Pre-soak blotting membrane and filter papers in transfer buffer.

3. Assemble transfer sandwich by orientating cathode, sponge, filter papers, gel, membrane, filter papers, sponge, and anode. The protein goes to the direction of cathode to anode.

4. Carefully move roller over the gel/membrane to remove air bubbles and excess buffer until complete contact is established.

5. Insert transfer cassette into transfer module. Notice that black side of cassette should be next to black side of module.

6. Fill transfer tank with pre-cooled transfer buffer to the highest water level.

7. Set constant voltage at 100 V. Transfer for 90 minutes at low temperature condition. Pre-stained protein marker should be visible on the membrane after transfer is completed.
    Transfer of proteins to the membrane can be checked using Ponceau S staining before blocking step.

Supplemental Information for Using Q-PAGE™ Precast Gel

Adapting Q-PAGE™ Mini Precast Gel to BioRad Mini-PROTEAN® Core

1. After removing comb and tape, place the Q-PAGE™ Mini Precast Gel with notched plate facing toward inner chamber.

2. Align the notched plate to ensure the edge sits just below the notch at the top of green gasket.

3. Gently press gel cassette toward green gasket and then lock gel cassette with two green arms. Avoid squeezing the cassette and gel.

4. Fill inner chamber with running buffer to check tightness of seal. If necessary, reassemble and check the seal again.

5. Fill inner chamber with running buffer to ensure gel wells are completely covered.

6. Fill outer chamber with running buffer to the highest level.

Adapting Q-PAGE™ Mini Precast Gels to other electrophoresis system, please follow the manufacturer’s instruction.

Buffer recipes

2X sample buffer with reducing agent
62.5 mM Tris-HCl pH 6.8, 2% SDS, 25% (v/v) glycerol, 0.01% bromophenol blue, 5% β-mercaptoethanol or 100 mM DTT (added fresh)

10X MOPS running buffer
60.6 g Tris base, 104.6 g MOPS, 10.0 g SDS, 3.0 g EDTA.  Bring up the volume to 1 L with ddH2O

10X MES running buffer
60.6 g Tris base, 97.6 g MES, 10.0 g SDS, 3.0 g EDTA.  Bring up the volume to 1 L with ddH2O

1X running buffer
Dilute 100 ml 10X running buffer with 900 ml ddH2O

10X transfer buffer
30.0 g Tris base, 144.0 g Glycine. Bring up the volume to 1 L with ddH2O

1X transfer buffer
*Cool 1X transfer buffer to 4°C before using. Dilute 100 ml 10X transfer buffer with 200 ml methanol and 700 ml ddH2O.
**Add SDS to 0.1% to promote transfer of high molecular weight proteins.







Troubleshooting Guidelines

Problem

Possible Cause

Suggested Solution

Well deformation

Pull one side of comb out of cassette.

Smoothly pull the comb straight out of the cassette.

Bubbles between gel and cassette

Gel has been frozen or stored at wrong temperature.

Store Q-PAGE Precast Gels at 4°C.

Buffer leaking from the inner chamber

Untight assembly of gels to the electrode modules

Reassemble Q-PAGE gels into the electrode modules.

Fill outer chamber with 1X running buffer to the highest level.

Samples do not sink into the wells.

Residual gel storage buffer in the wells

Rinse the gel wells with ddH2O or 1X running buffer before loading.

Insufficient sample buffer

Use more sample buffer to prepare samples.

Current is zero and sample do not migrate into gel

Tape at bottom of gel not removed

Remove tape

Gels run faster or more slowly than expected.

Incorrect running buffer

Check buffer composition.

Use fresh 1X running buffer for inner chamber.

Crooked bands at middle or bottom of gel

Gel has been frozen or stored at wrong temperature.

Store Q-PAGE Precast Gels at 4°C.

Incorrect running buffer

Check buffer composition.

Use fresh 1X running buffer for inner chamber.

Band pattern curves toward one or both sides of gel.

Buffer leaking from the inner chamber

Check assembly of gels into the electrode modules.

Excessive heating of gel

Check buffer composition. Or dilute running buffer to 0.5-0.75X.

Do not exceed recommended running conditions.

Insufficient buffer in inner or outer buffer chamber

Fill inner and outer chambers to completely cover gel wells.

Poor resolution or fuzzy bands

Excessive heating of gel

Check buffer composition.

Do not exceed recommended running conditions.

Incorrect running buffer

Check buffer composition.

Bands are missing on the membrane after Western transferring.

Proteins move in the wrong direction

Check the order of gel/membrane sandwich assembly, the direction of transfer cassette in transfer modules, and the polarity of connections to power supply.

Swirls or missing bands; bands trail off in multiple directions on the membrane after Western transferring.

Contact between the membrane and the gel was poor; Air bubbles or excess buffer remains between the blotting membrane and the gel.

Use thicker/more filter paper in the gel/membrane sandwich

Remove air bubbles and excess buffer between gel and membrane by carefully moving the roller over the membrane.





The buffer has leaked when put Q-PAGE™ TGN Midi Precast Gel in the device Hoefer SE260.

Dislocation of the gel cassette in the electrophoresis tank.

Place the gel cassette directly down to the bottom of the electrophoresis tank.

The bottom edge of the gel cassette should be completely against the bottom of the electrophoresis tank.

Looseness of the spring in spring clamps.

Replace it with a new spring clamp.

Dirt, nicks or abrasion on the gray silicone rubber gasket.

Clean away any gel remains adhering to the foam gasket. Remove the gray silicone rubber gasket from the core. If there is nicks or abrasion, replace it with a new one.

Apparent molecular sizes of prestained protein markers are different as indicated.

Prestained protein markers used have not been calibrated
for use with Q-PAGE gels. Dyes for staining protein markers affect the migration patterns of prestained proteins in different buffer systems.

Calibrate prestained protein markers against unstained proteins of known size or use SMOBIO’s ExcelBand™ Protein Markers.


 Q-PAGE™ Precast Gel

Gel Type

Bis-Tris

TGN (Tris-Glycine-Novel)

Buffer systems

MOPS and MES

Tris-Glycine (Laemmli)

Features

Clear and sharp bands, high resolution

Quick running, clear bands

Cassette size

Mini Gel
(10 x 8.3 cm)

Midi Gel
(10 X 10 cm)

Mini Gel
(10 x 8.3 cm)

Midi Gel
(10 X 10 cm)

Electrophoresis system

Bio-Rad systems

Mini Gel Tank

Xcell SureLock,

Hoefer SE260

Bio-Rad systems

Mini Gel Tank

Xcell SureLock,

Hoefer SE260

Well format &

Capacity

12 wells,
  25 μl/well

15 wells,
22 μl/well

12 wells, 40 μl/well

15 wells, 28 μl/well

12 wells,
  25 μl/well

15 wells,
  22 μl/well

12 wells,
  40 μl/well

15 wells,
  28 μl/well

Gel percentage/

Cat. No.

8%

8%

8%

8%

10%

10%

10%

10%

QP2110

QP2120

QP3110

QP3120

QP4210

QP4220

QP5210

QP5220

12%

12%

12%

12%

4-15%

4-15%

4-15%

4-15%

QP2310

QP2320

QP3310

QP3320

QP4510

QP4520

QP5510

QP5520

4-12%

4-12%

4-12%

4-12%









QP2510

QP2520

QP3510

QP3520
